New K03 Pro Hunter (out of stock)
The K03 Pro body has no horizon deviation and the knife is clamped parallel to the table. The modern rack and pinion lift, which has a rail with involute (toothed) gearing and stepless adjustment, allows you to set the angle with an accuracy of 0.1°. The height adjuster with extended angle, due to its improved design, will allow you to sharpen knives in a range of angles from 8° to 39°, which allows you to sharpen to a total angle of up to 78°.
The movable part is connected to the base with a dovetail, which guarantees absolute accuracy of angle setting. An additional locking screw allows the lift to be rigidly locked during deburring operations. An additional lifting rod is used to increase the angle of sharpening. Fixing its position is now more convenient: the fixing screw can be installed on either side of the body. The lift is made of black anodized aircraft aluminum. We moved the angle measuring scale with a reference on the hinge unit to the front side of the slider, and the rod. It will be possible to buy the lift separately and also to use it with the upgrade kit for the TSPROF K02 sharpener.
The unique rotating mechanism has a wide lever that makes rotation easy and ensures reliable auto-locking of the clamping frame. Thanks to the system of springs and bearings, the frame turns over without wear of the mechanism. The body of the auto-flip system is made of durable aircraft-grade aluminum anodized in black.
The universal holder allows you to use any abrasive stones with the sharpener, both on blanks and without them. The abrasive holder has no metal plate, but thanks to the special geometry of the stops, it allows you to fix the abrasives as securely as possible. The abrasive holder bar has an increased length of 694 mm, is made of steel and has high rigidity. The holder rod is collapsible and joined by an aluminum sleeve coupling, with a three-point mounting, which gives the maximum alignment of the connection. The rod is equipped with a convenient thumbscrew for adjustment which allows the rod to be connected in one motion.
The Axicube angle finder comes together with the abrasive holder. Developed specifically for sharpening systems, the angle finder is integrated into the body of the holder's movable stop which allows real-time monitoring of the sharpening angle. The Axicube is rigidly connected to the abrasive holder and is in the plane of the abrasive stone. This allows maximum angle accuracy during use. Axicube allows you to set the angle with an accuracy of up to 0.1°. It has a black anodized aluminum body and it is water, dust, vibration, drop and temperature resistant. Can be used in temperatures from 0°C to +40°C. Charges from a standard micro-USB charger. Each Axicube is calibrated at the factory with verified measuring instruments. Before use, a special calibration plate is used to give it an initial reference angle. If the sharpening device is moved to another surface, a new calibration with the plate is required.
The product is not intended for measurements other than sharpening, correct operation of the product is only possible in combination with the TSPROF K03 Pro. The product is NOT COMPATIBLE with TSPROF Kadet and TSPROF Blitz sharpeners. Correct operation of the product with other sharpening systems is not guaranteed.
Whole-milled clamps, made of high-strength black anodized aircraft-grade aluminum. The clamps of this type provide the greatest rigidity and stability of the device. Thanks to the monolithic design of the clamps, their main advantage is the increased resistance to abrasive pressure, which ensures consistency of angles during all phases of work, from roughing to finishing. When working with this type of clamps it is not necessary to calibrate and adjust to different shapes of knives. They have a simple and convenient principle of clamping (using a single L-shaped key), and they allow you to clamp a wide variety of knives, including knives with bevels from the spine, folding knives, kitchen knives, hunting knives, etc.
The TSPROF steel stand, weighing over 3 kg, holds the unit securely on the table and allows you to sharpen on any flat surface.
A set of diamond plates on blanks allows you to start sharpening immediately. The set includes 5 abrasives on aluminum blanks suitable for entire knife sharpening, from roughing to finishing. The electroplated diamond plates provide intensive metal removal and can be used for knives with significant damage (chips, dents, etc.).

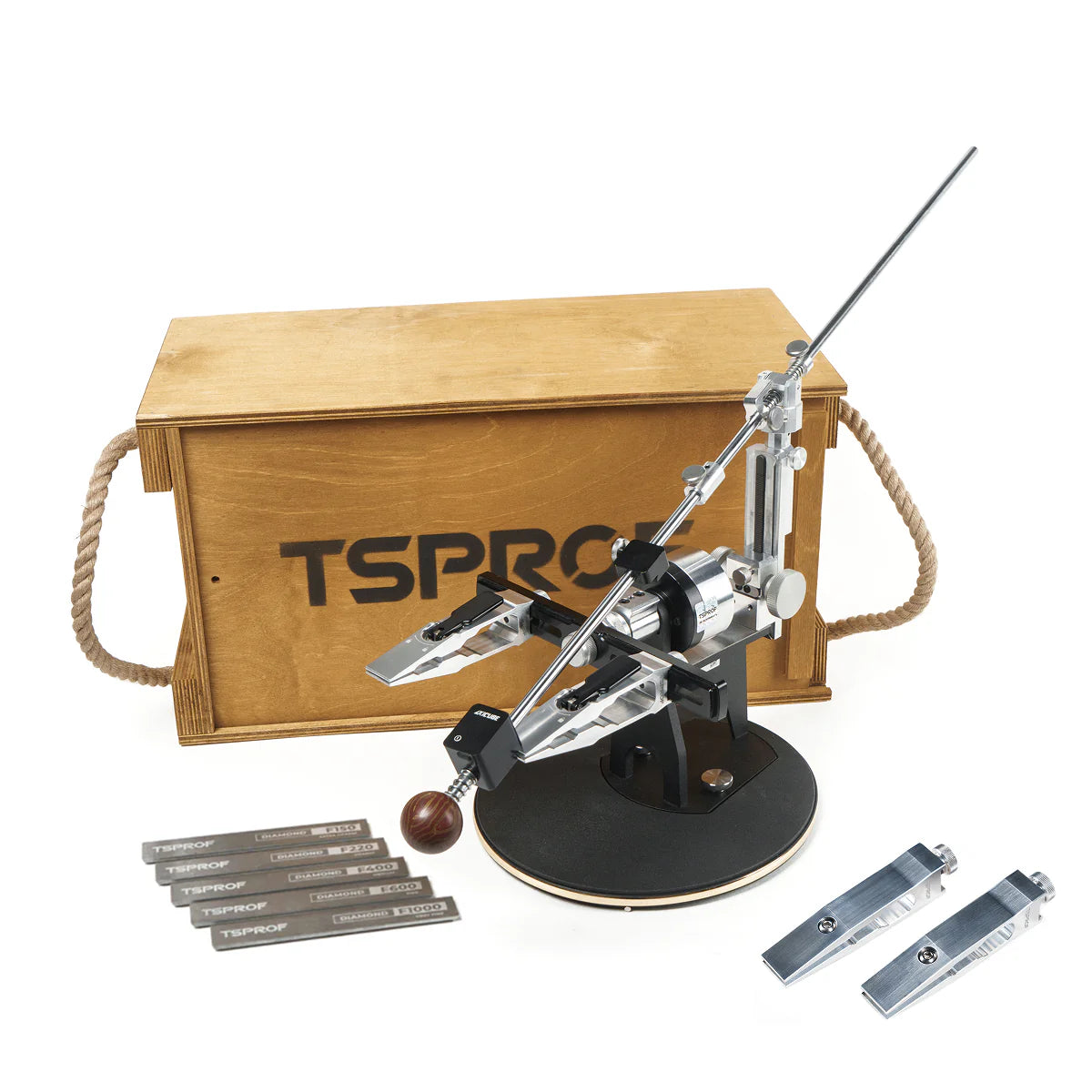

TSPROF K03 Pro Hunter Sharpening Kit includes:
- TSPROF К03 Pro Body with integrated Axicube-I electronic angle finder
- Whole-milled clamps - 2 pcs.
- TSPROF steel stand
- Set of diamond plates on blanks - 5 pcs.
- Spare parts
- Packaging: wooden box
